How to optimize your existing queries with search indexes
In October 2022, BigQuerylaunched the search indexes and
SEARCH function that enable using Google Standard SQL to efficiently pinpoint specific data elements in unstructured text and semi-structured data. In a previous blog post, we demonstrated the performance gains achievable by utilizing search indexes on the SEARCH function.
Today, BigQuery expands the optimization capabilities to a new set of SQL operators and functions, including the equal operator
(=), IN operator,
LIKE operator, and
STARTS_WITH function when used to compare string literals with indexed data. This means that if you have a search index on a table, and a query that compares a string literal to a value in the table, BigQuery can now use the index to find the rows that match the query more quickly and efficiently.
For more information about which existing functions/operators are eligible for search index optimization, refer to the Search indexed data documentation.
In this blog post we cover the journey from creating an index and efficiently retrieving, via a few illustrative examples, and share some measured performance gain numbers.
Take Advantage of Search Index Optimizations with Existing SQLs
Before this launch, the only way to take advantage of a BigQuery search index was to use the SEARCH function. The
SEARCH function is powerful. In addition to column-specific, it supports cross-column search, which is particularly helpful in cases of complex schemas with hundreds of columns, including nested ones. It also provides powerful case sensitive and case insensitive tokenized search semantics.
Even though the

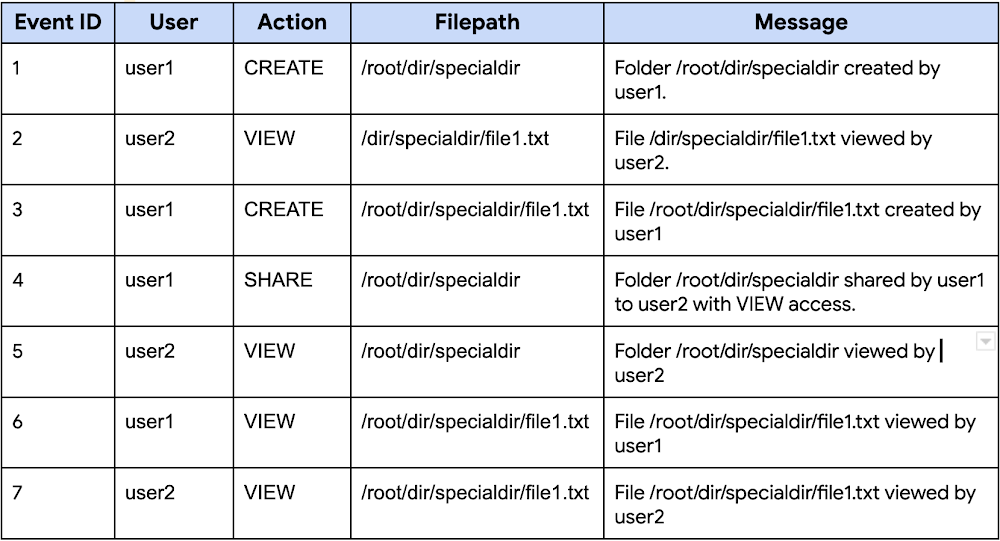

SEARCH function is very versatile and powerful, it may not always provide the exact result semantics one may be looking for. For example, consider the following table that contains a simplified access log of a file sharing system:
The SEARCH function allows searching for a token that appears anywhere in the table. For example, you can look for any events that involve
"specialdir" with the following query:
- [StructValue([(u’code’, u’– Query 1\r\nSELECT * FROM Events WHERE SEARCH(Events, “specialdir”);’), (u’language’, u”), (u’caption’, <wagtail.wagtailcore.rich_text.RichText object at 0x3e84396a6c50>)])]
The above query will return all rows from the above table.
However, consider the case where you want a more specific result — only events related to the folder
"/root/dir/specialdir". Using the
SEARCH function as in the following query will return more rows than desired:
- [StructValue([(u’code’, u’– Query 2\r\nSELECT * FROM Events WHERE SEARCH(Filepath, “/root/dir/specialdir”);’), (u’language’, u”), (u’caption’, <wagtail.wagtailcore.rich_text.RichText object at 0x3e843b986750>)])]
The above query also returns all rows except the one with Event ID 2. The reason is
SEARCH is a token search function, it returns true as long as the searched data contains all the searched tokens. That means,
SEARCH("/root/dir/specialdir/file1.txt", "/root/dir/specialdir") returns true. Even using backticks to enforce case sensitivity and the exact order of tokens would not help,
SEARCH("/root/dir/specialdir/file1.txt", "`/root/dir/specialdir`") also returns true.
Instead, we can use the
EQUAL operator to make sure that the result only contains the events related to the folder, not the files in the folder.
- [StructValue([(u’code’, u’– Query 3\r\nSELECT * FROM Events WHERE Filepath = “/root/dir/specialdir”;’), (u’language’, u”), (u’caption’, <wagtail.wagtailcore.rich_text.RichText object at 0x3e8419c81d10>)])]

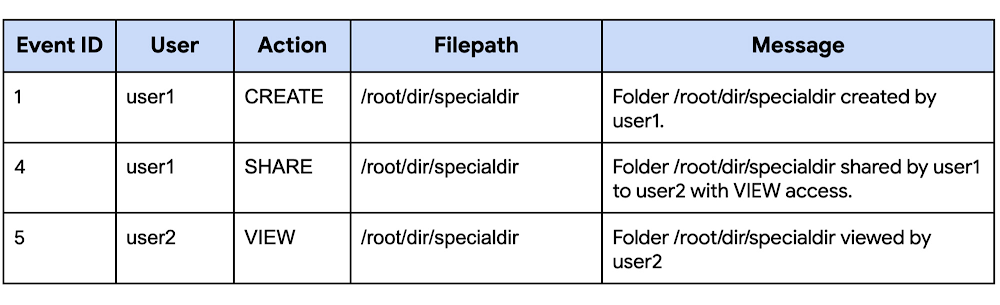

Query 3 Results
With this launch, Query 3 now can utilize the search index for lower latency, scanned bytes, and slot usage.
At the moment, the
SEARCH function does not support prefix search. With the newly added support for using indexes with the
STARTS_WITH and (a limited form of)
LIKE, you can run the following queries with index optimizations:
- [StructValue([(u’code’, u’– Query 4\r\nSELECT * FROM Events WHERE STARTS_WITH(Filepath, “/dir/specialdir”);\r\n– Query 5\r\nSELECT * FROM Events WHERE Filepath LIKE “dir/specialdir%”);’), (u’language’, u”), (u’caption’, <wagtail.wagtailcore.rich_text.RichText object at 0x3e840aadfd50>)])]
Borth Query 4 and Query 5 return one row with Event ID 2. The
SEARCH function would not have been an ideal option in this case because every row contains both tokens
"specialdir", and thus it would have returned all rows in the table.
Querying Genomic Data
In this section we share an example of retrieving information from a public dataset. BigQuery hosts a large number of public datasets, including
bigquery-public-data.human_genome_variants — the 1000 Genomes dataset comprising the genomic data of roughly 2,500 individuals from 25 populations around the world. Specifically, the table
1000_genomes_phase_3_optimized_schema_variants_20150220 in the dataset contains the information of human genome variants published in phase 3 publications (https://cloud.google.com/life-sciences/docs/resources/public-datasets/1000-genomes). The table has 84,801,880 rows, with the logical size of 1.94 TB.
Suppose that a scientist aims to find information about a specific genomic variant such as rs573941896 in this cohort. The information includes the quality, the filter (PASS/FAIL), the DP (sequencing depth), and the call details (which individuals in the sample have this variant). They can issue a query as follows:
- [StructValue([(u’code’, u”SELECT names, quality, filter, DP, call\r\nFROM bigquery-public-data.human_genome_variants.1000_genomes_phase_3_optimized_schema_variants_20150220\r\nWHERE names[safe_offset(0)]=’rs573941896′;”), (u’language’, u”), (u’caption’, <wagtail.wagtailcore.rich_text.RichText object at 0x3e8418773290>)])]

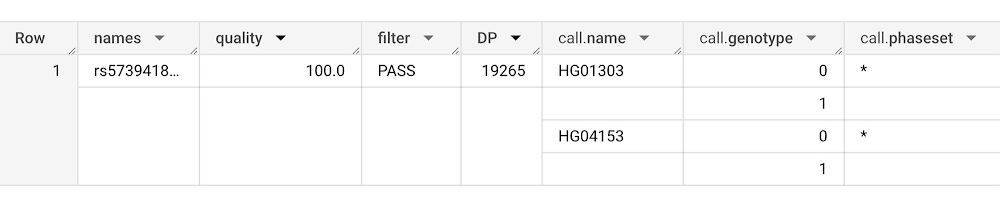

The query returns 1 row:

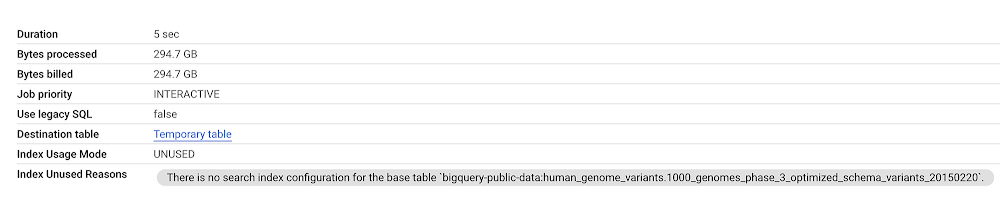

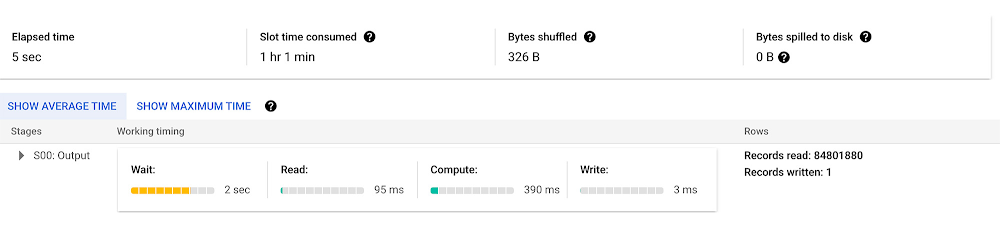

Without a search index on the table, the above query takes 5 secs and scans 294.7 GB, consuming 1 hr 1 min slot time:
In the next section, we demonstrate the journey for benefitting from search indexes for this use case.
Create Search Index for Faster String Data Search
Creating a BigQuery’s search indexcan accelerate the desired retrieval in this case. We made a copy of the public table to one of our datasets before creating the index. The copied table is now
We use the following DDL to create the search index on the names column in the table:
- [StructValue([(u’code’, u’CREATE SEARCH INDEX my_index ON genome_variants(names);’), (u’language’, u”), (u’caption’, <wagtail.wagtailcore.rich_text.RichText object at 0x3e84398a7190>)])]
CREATE SEARCH INDEX command returns immediately, and the index will be asynchronously created in the background. The index creation progress can be tracked by querying the
- [StructValue([(u’code’, u”SELECT * FROM my_dataset.INFORMATION_SCHEMA.SEARCH_INDEXES\r\nWHERE table_name=”genome_variants”;”), (u’language’, u”), (u’caption’, <wagtail.wagtailcore.rich_text.RichText object at 0x3e841ab0dbd0>)])]
INFORMATION_SCHEMA.SEARCH_INDEXES view shows various metadata about the search index, including its last refresh time and coverage percentage. Note that the
SEARCH function always returns correct results from all ingested data, even if some of the data isn’t indexed yet.
Once the indexing is complete, we perform the same query as above:
- [StructValue([(u’code’, u”SELECT names, quality, filter, DP, call\r\nFROM my_project.my_dataset.genome_variants\r\nWHERE names[safe_offset(0)]=’rs573941896′;”), (u’language’, u”), (u’caption’, <wagtail.wagtailcore.rich_text.RichText object at 0x3e841ab0d4d0>)])]

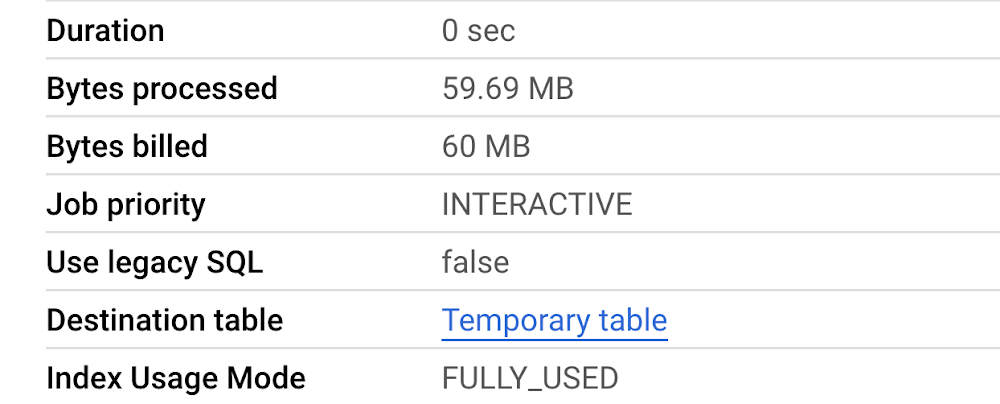

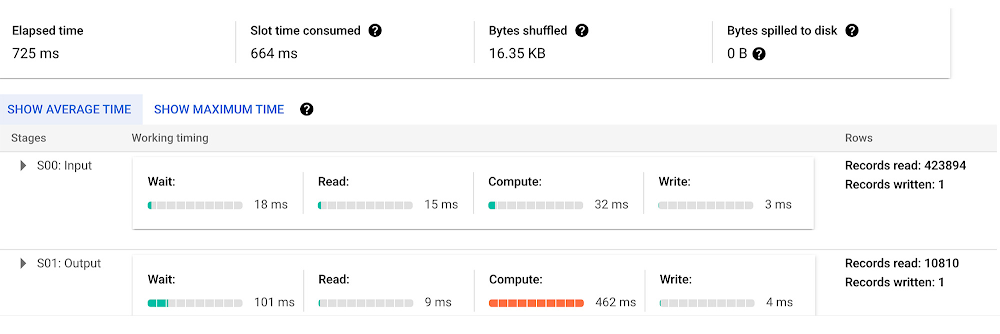

We can see significant gains in 3 fronts:
Query latency: 725 ms (vs. 5 seconds without the search index)
Bytes processed: 60 MB (vs. 294.7 GB without the search index)
Slot time: 664 ms (vs. 1 hour 1 min without the search index).
Performance Gains When Using Search Indexes On Queries with String EQUAL
To benchmark the gains on larger and more realistic data, we ran a number of queries on Google Cloud Logging data for Google internal test project (at 10TB, 100TB scales). We compare the performance between having and not having the index optimizations.

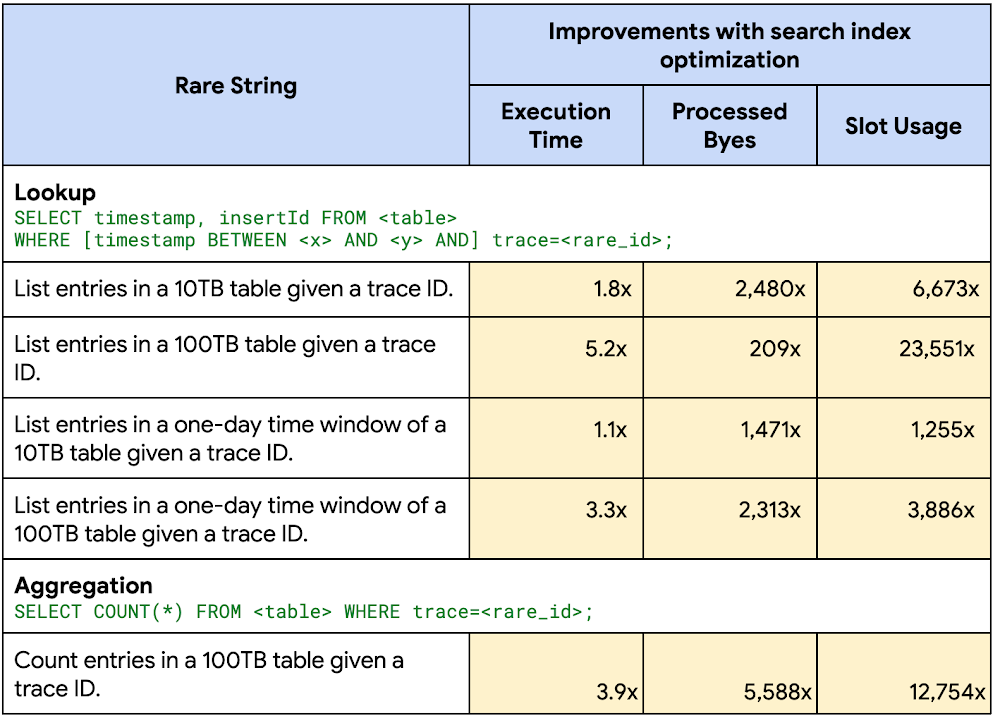

Rare string search

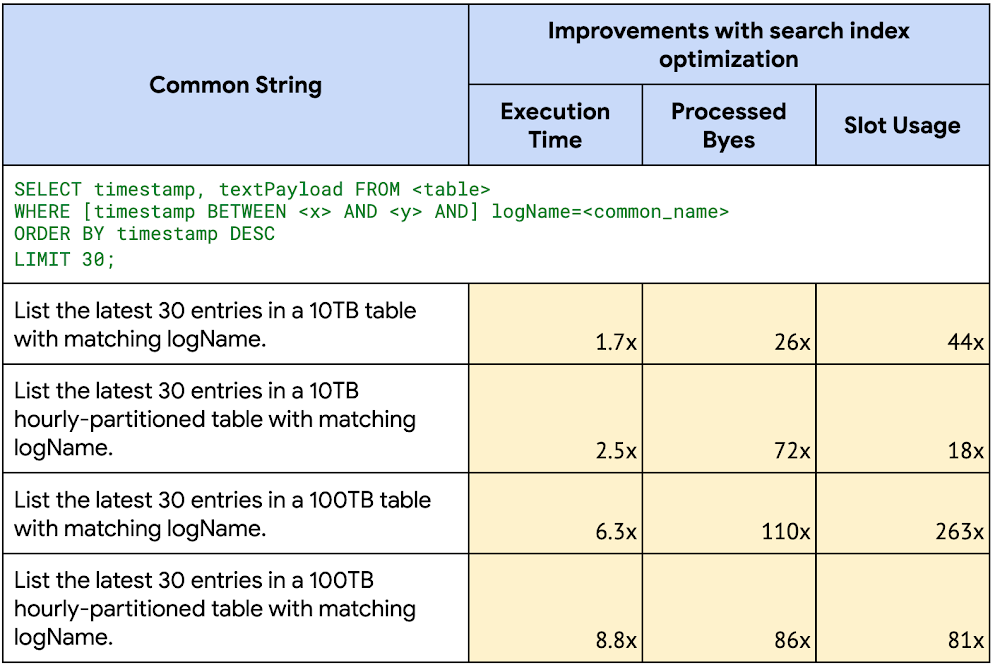

Common string search on most recent data (order-by+limit)
In our October 2022 launch, we unveiled an optimization for queries that use the
SEARCH function on large partitioned tables with an
ORDER BY on the partitioned column and a LIMIT clause. With this launch, the optimization is expanded to also cover queries with literal string comparisons using

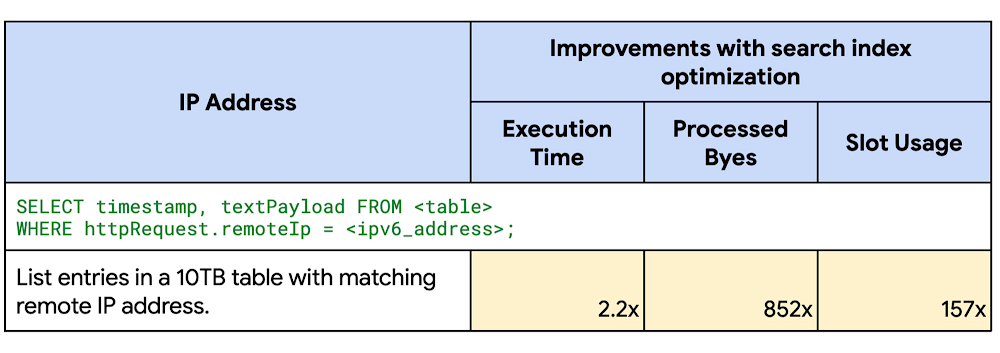

IP address search

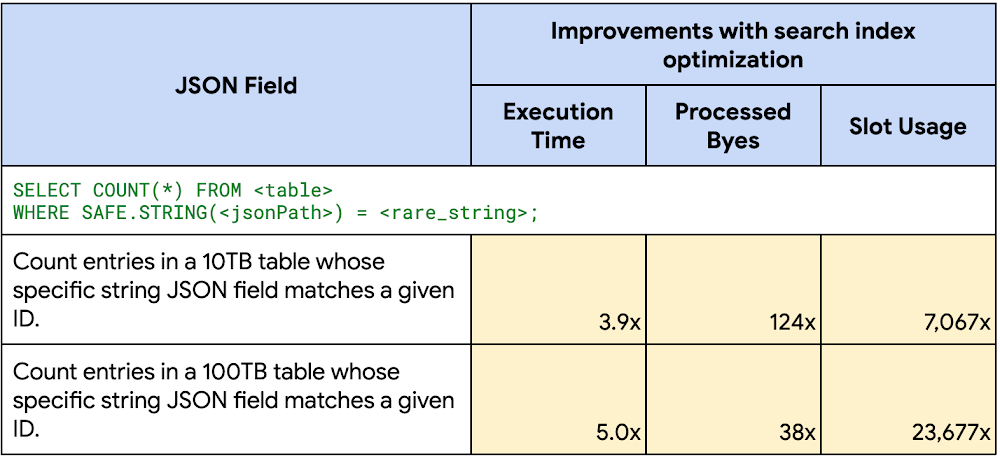

JSON field search
Using search index optimizations with equal (
STARTS_WITH is currently in preview. Please submit this allowlisting form if you would like to enable and use it for your project. More optimizations are still on the way. Stay tuned.
